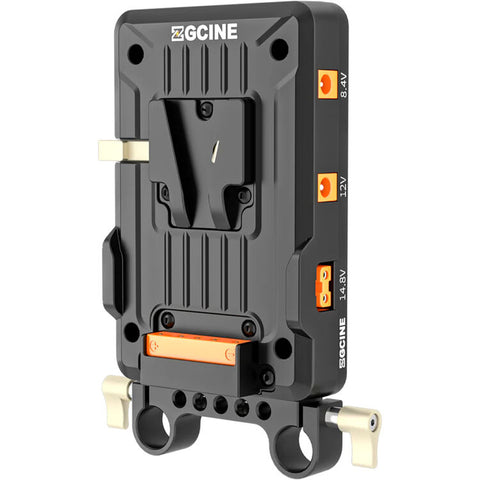

ZGCINE VM-VP1 V-Mount Battery Plate 15mm LWS Multi Output
Product Description
The ZGCINE VM-VP1 is a V-mount battery plate with a 15mm LWS mount that powers a camera and multiple accessories at different voltages from a single V-mount battery.
The plate takes one V-mount battery and distributes its power through two USB-C PD fast-charging ports, a USB-A QC port, three DC barrel outputs, and two D-Tap outputs, so one battery can run your camera, monitor, lights, and more at once. A one-button switch turns the outputs on and off, an LED shows battery status, and it mounts to a 15mm LWS rod system with the included clamp or to a rig via its five 1/4-inch-20 threads.
Ideal for: videographers and filmmakers building a rig who want to power a camera and several accessories from one V-mount battery.
Powering a full rig usually means several batteries and a tangle of chargers. This plate centralises power on one V-mount battery and feeds everything through its range of ports at the right voltage, from USB-C and USB-A for phones and small devices to DC barrel and D-Tap for cameras, monitors, and lights. D-Tap and BP inputs also let you charge or pass power through, and the 15mm LWS mount plus multiple 1/4-inch-20 threads make it easy to build into a rig.
Key Features
- Single V-mount battery, many outputs: power a camera and multiple accessories at once.
- Two USB-C PD and one USB-A QC output: fast charging for phones, laptops, and USB devices.
- Three DC barrel outputs: 8.4V/3A and two at 12V/3A for cameras and accessories.
- Two D-Tap outputs: 14.8V/15A for lights, monitors, and D-Tap gear.
- D-Tap and BP inputs: 16.8V/3A for charging or passing power through.

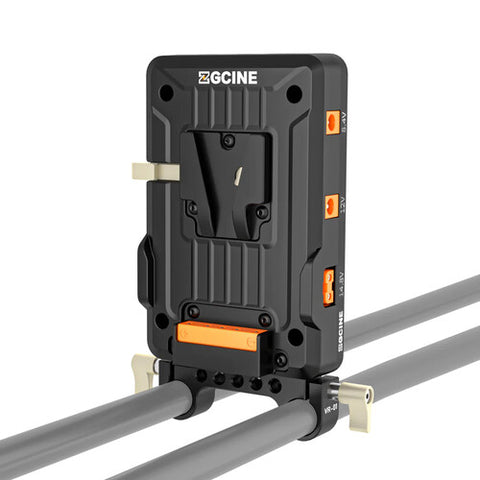

- 15mm LWS mount and 1/4-inch-20 threads: five threads plus the included clamp for flexible rigging.

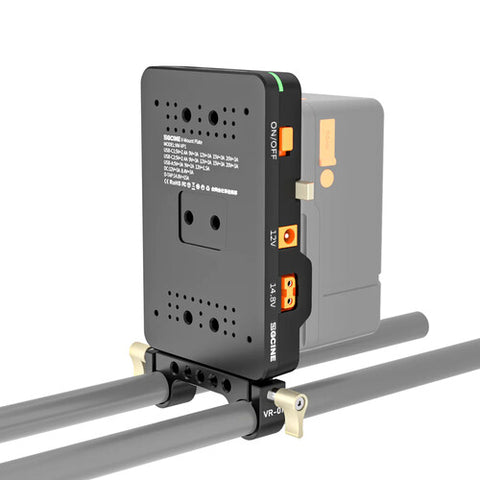

- One-button control with LED indicator: switch outputs on or off and check battery status at a glance.
Specifications
| Specification | Detail |
|---|---|
| Model | ZGCINE VM-VP1 (Kit 1) |
| Type | V-mount battery plate with 15mm LWS mount |
| Battery bays | 1 (V-mount) |
| USB-C 1 and 2 (PD out) | 5V/2.4A, 9V/3A, 12V/3A, 15V/3A, 20V/3A each |
| USB-A (QC out) | 5V/3A, 9V/2A, 12V/1.5A |
| DC barrel outputs | 8.4V/3A x1, 12V/3A x2 |
| D-Tap outputs | 14.8V/15A x2 |
| D-Tap inputs | 16.8V/3A x2 |
| BP input | 16.8V/3A |
| Mounting | 15mm LWS mount, five 1/4-inch-20 threads |
| Controls | One-button on/off, LED status indicator |
| Dimensions | 15 x 12.2 x 3.6 cm |
| Weight | 317.5g |
What's Included
- 1 x ZGCINE VM-VP1 V-mount battery plate
- 1 x USB-C to USB-C cable
- 1 x USB-C to USB-A cable
- 1 x 15mm rod clamp
