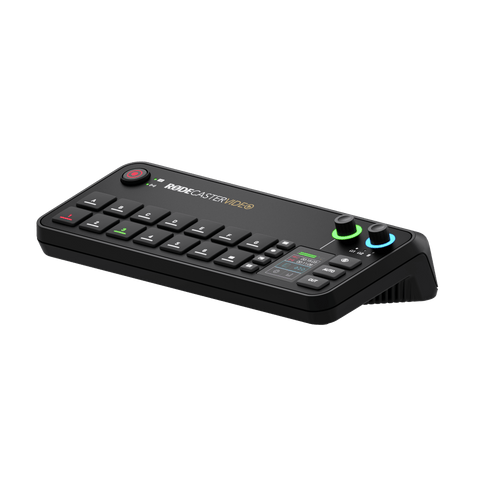

Rode RODECaster Video Video and Audio Production Console Black
Product Description
The Rode RODECaster Video is a video and audio production console that switches, mixes, processes, records, and streams a multi-camera show from one device, blending full video switching with a studio audio mixer.
It switches between up to six video sources and seven fully customisable scenes at the press of a button, driven by an octa-core processor. Four full HD (1080p) HDMI inputs with auto frame rate conversion and two configurable HDMI outputs (program, preview, or multiview) handle your cameras and monitors, and two USB-C ports add compatible webcams, capture cards, Rode USB microphones, and even a RODECaster Pro II or Duo as extra sources. On the audio side, two Neutrik combo inputs run ultra-low-noise Revolution Preamps, two internal Series IV wireless receivers take Rode wireless mics, and the mixer handles up to 20 sources (nine stereo channels at once) with 12 custom-routed outputs and APHEX processing on every channel. Automatic chroma keying, media playback, graphics overlays, multi-source layouts, and custom transitions are all on the front panel, with an Inspect button to preview and configure any input, and intelligent auto-switching that cuts between cameras based on who is talking. NDI support adds up to four video-over-IP inputs and one output, plus iPhone integration through the RODE Capture app, and you can record every source independently (ISO) to USB storage, export an EDL to DaVinci Resolve, and stream to major platforms over WiFi, Ethernet, or USB.
A multi-camera show normally needs a separate video switcher, an audio mixer, a recorder, and a producer to run it. The RODECaster Video brings all of that into one console, and its auto-switching runs the cameras for you when you are working solo.
Ideal for: video podcasters, live streamers, and broadcasters producing multi-camera shows who want switching, mixing, recording, and streaming in one place.
Compatibility
- Video inputs: four HDMI sources plus two USB-C video inputs (compatible webcams, capture cards, and UVC devices), and an iPhone over NDI via the RODE Capture app.
- Audio inputs: two XLR/line/instrument combo inputs, two Series IV wireless receivers, Rode USB mics via USB 4 and 5, and Bluetooth.
- Connect a RODECaster Pro II or Duo over USB as an additional source.
- Stream to Twitch, YouTube, and other platforms via WiFi, Ethernet, or USB.
- RODECaster app for remote control: macOS 11 or later, Windows 10 (version 1803 or later).
Key Features
- Video switching: up to six video sources and seven customisable scenes at a button.
- Octa-core processor: for video and audio processing.
- HDMI and USB video: four full HD HDMI inputs, two HDMI outputs, and two USB-C video inputs.
- Studio audio: two Revolution Preamps and two wireless receivers, with APHEX processing per channel.
- Flexible mixer: up to 20 sources, nine stereo channels at once, and 12 custom-routed outputs.
- Automatic chroma keying: for quick green-screen setups.
- On-panel production tools: media playback, graphics overlays, multi-source layouts, transitions, and the Inspect button.
- Intelligent auto-switching: hands-free camera switching based on who is speaking.
- NDI and iPhone: video-over-IP (four in, one out) plus iPhone via RODE Capture, with PTZ camera control.
- Record and edit: independent ISO recording to USB storage and EDL export to DaVinci Resolve.
- Stream anywhere: via WiFi, Ethernet, or USB.
- Control: 2-inch touchscreen and rotary encoder, with remote control via the RODECaster app.
Specifications
| Specification | Detail |
|---|---|
| Model | Rode RODECaster Video |
| Processor | Octa-core |
| Video sources | Up to 6, plus 7 customisable scenes |
| HDMI | 4 full HD (1080p) inputs with auto frame rate conversion, 2 configurable outputs |
| USB video/audio | 2 USB-C ports (webcams, capture cards, Rode USB mics, RODECaster Pro II/Duo) |
| Analogue audio inputs | 2 combo jacks (microphone, line, instrument) with Revolution Preamps |
| Wireless audio inputs | 2 Series IV wireless receivers |
| Preamps | -131.5dBV EIN, up to 76dB gain, 20Hz to 20kHz |
| Audio mixer | Up to 20 sources, 9 stereo channels at once, 12 outputs with custom routing |
| Audio processing | APHEX VoxLab per channel: compressor, EQ, de-esser, panning, noise gate, high-pass filter, Aural Exciter, Big Bottom |
| Analogue audio outputs | 2 headphone outputs (1/4-inch), 2 balanced line outputs (1/4-inch L/R) |
| NDI | Up to 4 inputs and 1 output via Ethernet, plus iPhone via RODE Capture |
| Streaming | 48kHz / 32-bit, via WiFi, Ethernet, or USB |
| Recording | 48kHz / 24-bit to USB storage, with independent ISO recording |
| Display | 2-inch high-resolution touchscreen with rotary encoder |
| Colour | Black |
What's Included
- 1 x RODECaster Video
- 1 x USB-C cable (5Gbps / 60W, black, 2m)
- 2 x External antenna
- 1 x Power supply
