Aputure Amaran Ray 120c 120W RGB LED Light with Octa Dome 30
Product Description
The amaran Ray 120c is an ultra-compact 120W full-colour RGB COB LED monolight delivering up to 6850 lux at 1 metre, with a 1800 to 20,000K range, OmniColor accuracy, IP54 protection, and a Bowens mount.
It keeps the slim, compact design of the Ray 60c, staying just 5.1cm thick and around 0.6kg, but delivers 120W for creators who need more output and mobility. It is significantly brighter than amaran's 150c in a much smaller body, better suited to tight spaces and on-the-go workflows. The OmniColor light engine gives an enhanced colour spectrum with expanded red and blue ranges, and 360° full colour control through HSI and RGB modes.
Ideal for: content creators and vloggers working on location and in the studio who want a bright, colour-accurate full-colour light in a travel-ready body.
Compact RGB lights usually trade away either output, colour accuracy, or weather protection. The Ray 120c avoids that: bare, it delivers up to 6850 lux at 1 metre and 8719 lumens, with CRI 95, TLCI 95, SSI 80/87, and TM-30 94/100 ratings for cleaner whites and true skin tones that stay consistent on camera. The colour temperature runs 2300 to 10,000K, extendable to 1800 to 20,000K in CCT+ mode, with green to magenta shift and 0 to 100% stepless dimming. An FX mode offers 12 effects: fireworks, faulty bulb, lightning, TV, pulsing, strobe, explosion, fire, paparazzi, welding, cop car, and party.

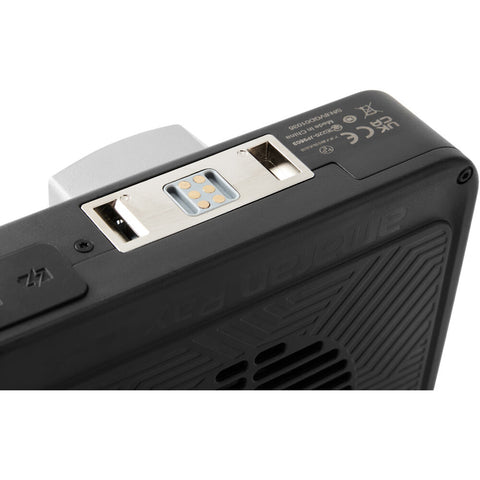

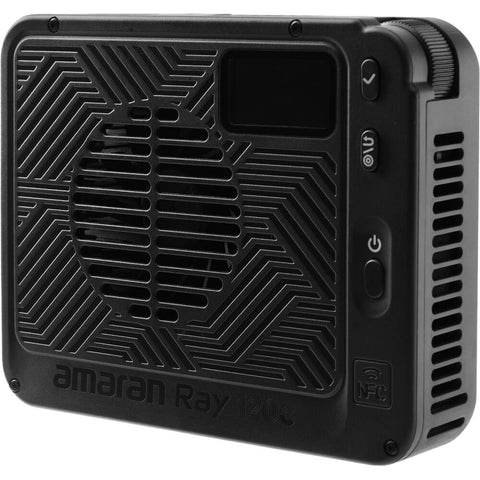

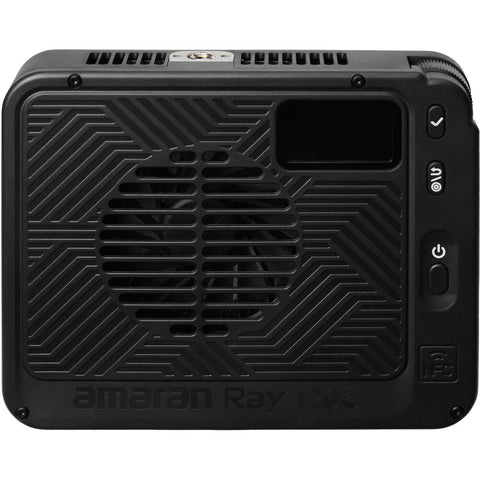

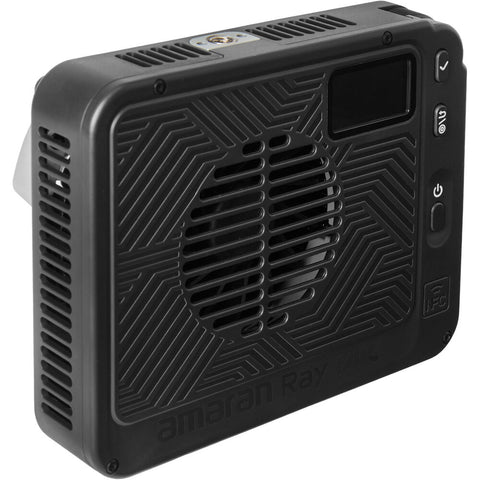

Control is handled through an intuitive menu and TFT screen, a FlowTurn knob for tactile adjustments, and one-tap NFC pairing to the amaran app, with Bluetooth control over a generous 80 metre range. Quick Operation, High-Speed Photography, and Studio modes plus custom shortcuts speed up common adjustments. Power options cover AC via the included adapter, USB-C PD 3.0, and 12 to 24V DC, along with Ace E-Lock support for optional batteries. With the optional amaran Peak battery you get around 35 minutes of cable-free running at full output, or up to 46 minutes with the Peak 75 at 50% output.

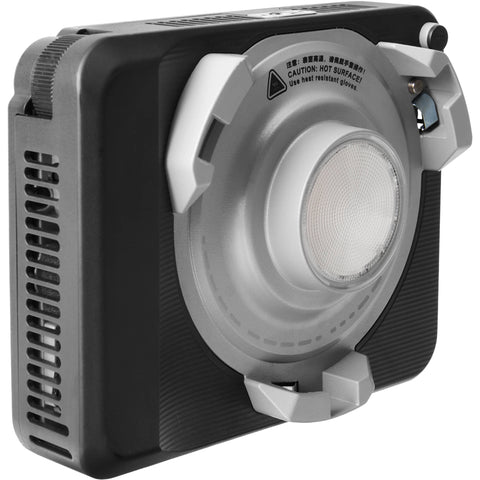

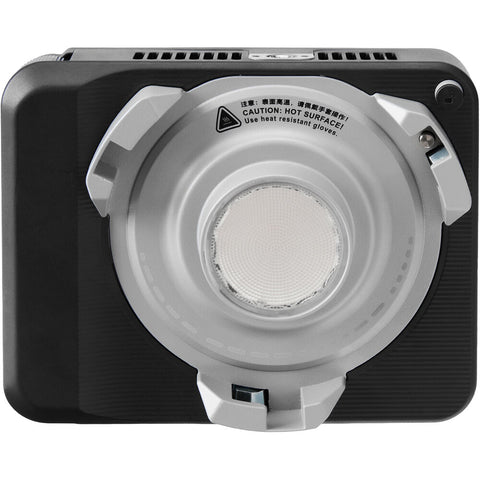

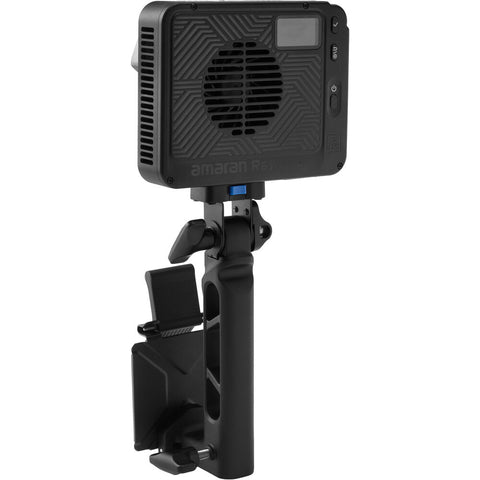

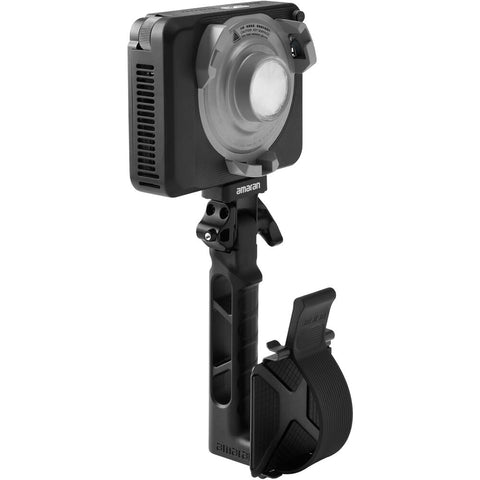

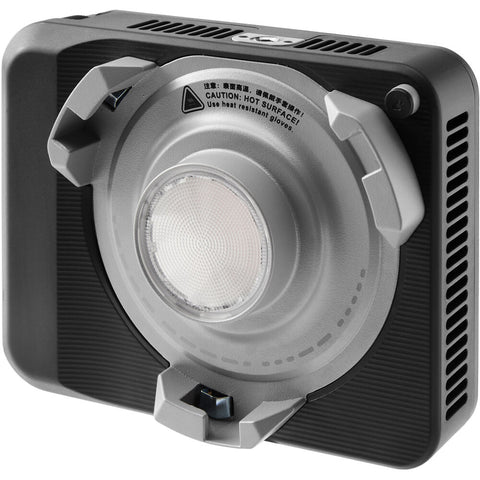

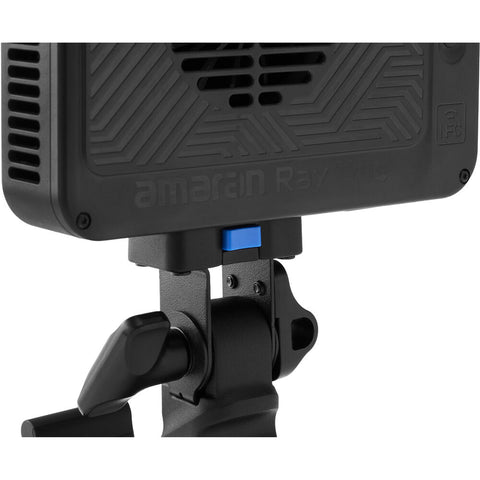

An IP54 rating adds dust and splash resistance for outdoor work in wind, light rain, sand, or humidity, and active fan cooling stays quiet at 28 dBA at maximum output, with silent and smart fan modes. The full-size metal Bowens mount fits the separately available Mini Reflector, Mini Fresnel, and other Bowens modifiers, and a 1/4-inch-20 thread allows attachment to other mounting gear. The included Octa Dome 30 softbox sets up in one snap, and an Ace Lock to Baby Pin Adapter Grip makes for quick mounting to stands or handheld use.
Key Features
- 120W full-colour RGB output: up to 6850 lux at 1 metre bare and 8719 lumens, brighter than the 150c in a far smaller body.
- OmniColor light engine: expanded red and blue ranges for cleaner whites and truer skin tones.
- Extended 1800 to 20,000K in CCT+: a 2300 to 10,000K standard range with green to magenta shift and 0 to 100% stepless dimming.
- 360° colour control with 12 effects: HSI and RGB modes plus FX including lightning, fire, strobe, and paparazzi.
- High colour fidelity: CRI 95, TLCI 95, SSI 80/87, and TM-30 94/100.
- Flexible power: AC, USB-C PD 3.0, or 12 to 24V DC, with Ace E-Lock support for optional batteries.
- On-board and app control: TFT screen, FlowTurn knob, and one-tap NFC with Bluetooth over an 80 metre range.
- IP54-rated and quiet: dust and splash resistant, fan cooled at 28 dBA with silent and smart modes.
- Full-size Bowens mount: fits Mini Reflector, Mini Fresnel, and other Bowens modifiers, plus a 1/4-inch-20 thread.
Specifications
| Specification | Detail |
|---|---|
| Model | amaran Ray 120c |
| Item type | Full-colour RGB COB LED monolight |
| Power consumption | 140W (maximum) |
| Photometrics (unmodified) | 6850 lux at 1m (3200K); 6520 lux at 1m (5600K) |
| Photometrics (with softbox) | 2497 lux at 1m (3200K); 2378 lux at 1m (5600K) |
| Lumens | 8719 |
| Colour temperature | 2300 to 10,000K, extendable to 1800 to 20,000K (CCT+) |
| Colour modes | RGB, daylight, tungsten, with green to magenta shift |
| Colour accuracy | CRI 95, TLCI 95, SSI 80/87, TM-30 94/100 |
| Dimming | 0 to 100% stepless (onboard and app) |
| Special effects | 12 (fireworks, faulty bulb, lightning, TV, pulsing, strobe, explosion, fire, paparazzi, welding, cop car, party) |
| Beam angle | 70° |
| Front accessory mount | Bowens S |
| Control | Onboard TFT, FlowTurn knob, amaran app (Android and iOS), Bluetooth, NFC |
| Wireless range | Up to 80m (Bluetooth) |
| Power source | AC (included adapter), USB-C PD 3.0, or 12 to 24V DC; optional battery (not included) |
| Input power | 100 to 240V AC, 50/60Hz at 2.5A; 12 to 24V DC |
| Fixture mounting | 1/4-inch-20 female thread, proprietary; included 5/8-inch swivel mount |
| Cooling | Active fan, 28 dBA at max output (silent and smart modes) |
| Weather resistance | IP54 (dust and splash resistant) |
| Display | LCD |
| Operating conditions | -10°C to 40°C |
| Dimensions | 14.5 x 11.4 x 5.1 cm (fixture) |
| Weight | 0.6kg (fixture) |

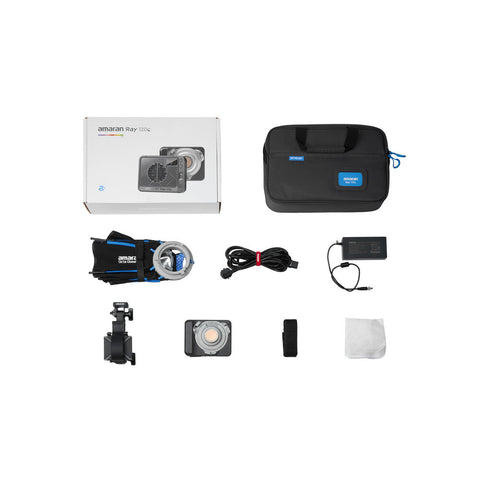

What's Included
- 1 x amaran Ray 120c RGB LED monolight

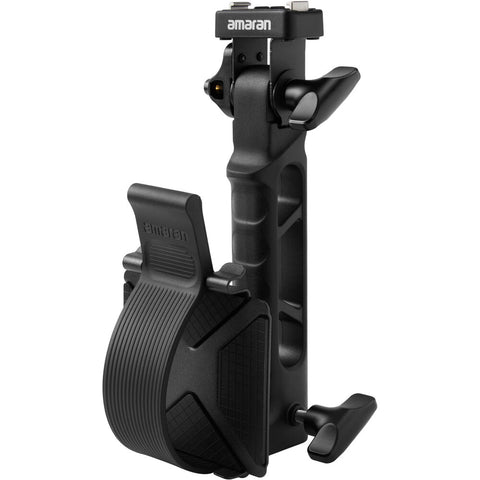

- 1 x Ace Lock to baby pin adapter grip
- 1 x Octa Dome 30 softbox
- 1 x Octa Dome 30 diffusion cloth
- 1 x Octa Dome 30 light control grid
- 1 x AC to DC 150W power adapter (0.5m)
- 1 x AC power cable (4m)
- 1 x Carry bag
