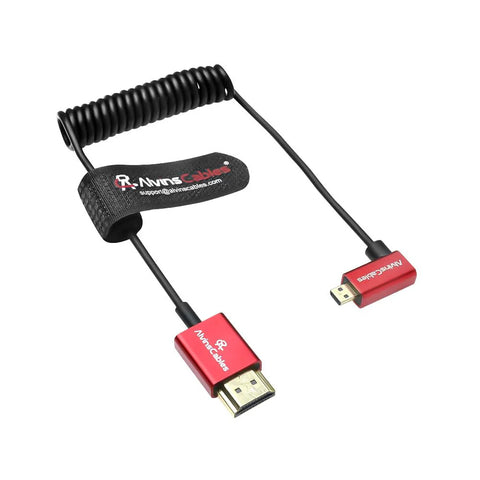

Alvins Cables 8K 2.1 Ultra-Thin Micro HDMI to HDMI Coiled — Left Angle Micro HDMI 30cm
Product Description
The Alvin's Cables 8K 2.1 Micro-HDMI Left-Angle to HDMI Ultra-Thin Coiled Cable is a low-profile coiled lead for videographers whose mirrorless camera has a micro-HDMI port and needs a tidy, low-strain link to a recorder or monitor like the Atomos Ninja V.
The left-angle micro-HDMI plug turns flat against the camera body rather than jutting straight out, so it tucks in close on a rig or gimbal. The cable itself is slim and supple in a red TPE jacket, with a coil that pulls out to reach and draws back when released. The gold-plated contacts sit inside a reinforced aluminium alloy shell that seats firmly into each port.
Ideal for: Videographers using mirrorless cameras such as the Sony A7R III, A7 III, or Canon EOS R5 with a micro-HDMI output, recording to a monitor or recorder like the Atomos Ninja V, SmallHD, or Portkeys.
A straight micro-HDMI plug sticks out from a small camera body and levers on that fragile port every time the rig moves, while loose cable adds to the strain and clutters a tight setup. This cable answers that with a left-angle plug that sits flush against the camera and a coil that keeps slack gathered up, while the shielded coaxial core carries a clean 4K or 6K feed to the recorder. The result is a compact, low-strain connection that records without frame drops.
Key Features
- Left-angle micro-HDMI coiled design: The angled plug turns flat against the camera and the coil retracts to about 30 cm, so the connection sits low on a small body and puts less leverage on the delicate micro-HDMI port as the camera moves.
- HDMI 2.1 at up to 48 Gb/s: The full 48 Gb/s of bandwidth carries 8K60 and 4K120 footage, which means high-resolution recording to a device like the Ninja V passes through without dropped frames or screen flashing.
- Ultrathin flexible TPE coaxial build: The 2.4 mm cable with a 1.87 mm shielded core bends easily and resists knotting and breaking, so it routes cleanly through a tight rig and stays out of the way.
- Gold-plated contacts in an aluminium alloy housing: Corrosion-resistant gold contacts inside a reinforced alloy shell keep a stable link and add impact resistance, so the connection holds up over repeated use on location.
Specifications
| Specification | Detail |
|---|---|
| Interface | HDMI 2.1, supporting 8K60P, 4K120P, and 1080p 3D for high-resolution recording and monitoring |
| Connectors | Left-angle micro-HDMI Type-D male to straight full-size HDMI Type-A male, matching the small output on many mirrorless cameras |
| Cable length | 30 cm unstretched, extending to 80 cm coiled (11.8" to 31.5"), so it stays short on the camera but reaches a nearby monitor |
| Maximum resolution | 7680 x 4320 at 60 Hz (8K60), with support for 3840 x 2160 at 120 Hz |
| Transmission speed | Up to 48 Gb/s, the full HDMI 2.1 bandwidth for uncompressed high-resolution video |
| Cable type | Coaxial, 2.4 mm outer diameter with a 1.87 mm shielded core for a slim, bendable profile |
| Type | Passive cable, no external power required, plug in and go |
| Jacket | Thermoplastic elastomer (TPE), a flexible sleeve that resists knotting and kinking |
| Connector housing | Reinforced aluminium alloy with gold-plated contacts |
| Shielding | Yes, to resist interference and minimise signal loss |
| Colour | Red |
What's Included
- Alvin's Cables 8K 2.1 Micro-HDMI Left-Angle to HDMI Ultra-Thin Coiled Cable (30 cm unstretched, 80 cm stretched)
