Four Lighting Setups for Dramatic Fitness Portraits with the Godox AD600BMII and LA300Bi

By Conrad Knuist · Head of Marketing and Photography Specialist · Godox Specialist · 18+ years in photography

Fitness portrait photography is about more than just lighting a subject. It's about using light to reveal shape, texture, and muscle definition in a way that a flat setup simply can't. To do it well, you need contrast, direction, and control.

In this tutorial, photographer Tosin Junaid demonstrates four distinct lighting setups using the Godox AD600BMII battery strobe and the Godox LA300Bi bi-colour LED, shooting in black and white to push the drama as far as it can go. Each look builds on the last, introducing new techniques and accessories that give you more shaping ability over the light.

At CameraStuff, we carry the full Godox AD and Litemons range. Whether you're setting up a fitness portrait studio or shooting on location, this breakdown gives you a practical framework to start from.

Why Most Studio Lighting Fails Fitness Portraits

The instinct when lighting a portrait is to make the subject look good, and for most portrait work that means soft, flattering, even light. A large softbox overhead, some fill from the front, and clean shadows. That approach works for headshots, editorial portraits, and commercial people photography. For fitness portraits, it's exactly the wrong approach.

Flat, even light removes the visual information that makes a fitness image work. Muscle definition is created by the gradient between a lit surface and a shadowed one. Without contrast, the three-dimensional shape of the physique disappears into a flat, grey mass. The harder and more directional your light, the more the subject's musculature reads on camera. Every shadow you preserve is a contour you're keeping in the image.

The challenge is that controlling contrast in a studio is not as simple as pointing a hard light. Studio walls, ceilings, and floors bounce light back at the subject, filling in exactly the shadows you want to keep. Managing what fills in is as important as managing what the key light does. This is where technique, modifier choice, and accessories like black flags become part of the lighting setup rather than afterthoughts.

The four looks in this tutorial each address a different aspect of that challenge, building from a single feathered key light to a two-light silhouette and highlight setup. Each one gives you a distinct result with a clear technical reason behind it.

Portrait photography techniques and the use of contrast in studio lighting, per Wikipedia: Portrait Photography.

The use of chiaroscuro and tonal contrast in visual art, as documented by Wikipedia: Chiaroscuro.

The Four Lighting Setups, Step by Step

Each of the four looks is a self-contained setup with its own logic. Start with Look 1 and work through them in order: the techniques introduced in each look carry forward into the next, so the progression makes sense even if you only intend to use one of them in your own work.

Look 1: Feathered Single Light,Sculpting Definition

The AD600BMII fires through the UL-Octa Box 150 positioned overhead and angled slightly to the side, but rather than pointing the centre of the modifier directly at the subject, it's feathered: the hot spot of the modifier is aimed slightly past the subject so the edge of the light, not the centre, falls on them. This does two things. First, it stops light from spilling onto the backdrop, keeping it dark and unlit. Second, it creates the side-directional shadows across the subject's physique that show muscle shape and contour. Feathering is a small positional adjustment that has a significant effect on both subject and background separately.

Conrad's Advice

Big light, soft shadows. Small light, hard shadows. It really is that simple. A 150cm softbox wraps around your subject beautifully. A 30cm modifier fires like a spotlight. For fitness work you want somewhere in between: enough punch to show the muscle, enough softness to keep it flattering. Pick your modifier before you touch the power dial.

Look 2: Negative Fill, Boosting Contrast and Drama

Look 2 adds black reflectors (black flags) on both sides of the subject while keeping the same key light position from Look 1. In a typical studio environment, light bounces off the walls and naturally fills in the shadow side of the subject, lowering contrast and softening the shadows. Black flags absorb that bounced light rather than reflecting it, so the shadows stay deep and the contrast stays high. The setup is identical to Look 1 except for the flags, but the images read with noticeably more punch. This is the setup to use when you want the shadows to work as hard as the highlights.

Conrad's Advice

Your studio walls are working against you. All that light bouncing off them? It fills in the very shadows you're trying to keep. Grab a couple of black reflectors, or even some black foam board from a craft shop, and place them on either side of your subject. Watch what happens to those muscle tones. It's one of the biggest bang-for-buck moves in fitness lighting and it costs almost nothing.

Look 3: Backlight Texture, Creating Visual Interest

Look 3 introduces the LA300Bi with the Godox BP-SE projection attachment. The LA300Bi and BP-SE are positioned behind the subject, projecting a defined pattern streak of light onto the backdrop. The AD600BMII remains in play as a front fill, dialled down just enough to prevent the image from going too dark while the backlight provides the visual centrepiece. This creates depth in what would otherwise be a flat, dark background and gives the composition a distinct cinematic quality. The BP-SE's pattern gobo determines the specific shape of the light, giving you options from wide texture to a tight, defined line.

Look 4: Silhouette and Highlight, Sculpting with Light

The most dramatic of the four looks. The AD600BMII now moves behind the subject inside a large octa box, creating a bright backlit base that renders the subject partially in silhouette. The LA300Bi with BP-SE then spotlights specific areas of the body you want to pull out of the silhouette, adding precise highlights where you choose them. The combination of broad background light and a tight, directional spot gives you full control over which parts of the physique to emphasise and which to keep in shadow. This setup requires deliberate positioning of both lights, but the results justify the extra setup time.

Softbox characteristics and light source size relative to shadow quality, per Wikipedia: Softbox.

Key light and fill light principles in photographic lighting, as documented by Wikipedia: Key Light.

What to Consider When Setting Up These Looks

Shooting in Black and White

The four setups in this tutorial are designed around black and white conversion, and that choice matters technically, not just aesthetically. Colour in a fitness portrait draws the eye to skin tone, wardrobe, and background colour rather than to shape and texture. Converting to black and white strips that information away and forces the viewer to read the image in terms of light and shadow alone. If the lighting is doing its job, the black and white version will be more compelling than the colour original. Use it as a quality check: if the black and white looks flat, the lighting isn't creating enough contrast regardless of how the colour version reads.

Working with the LA300Bi and BP-SE

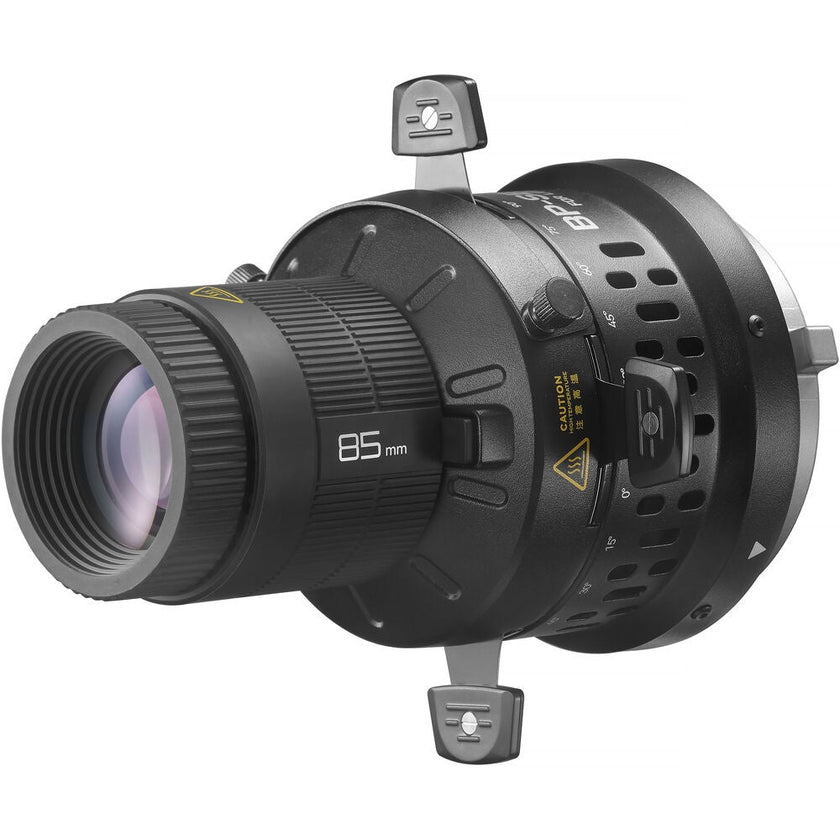

The Godox BP-SE is a projection attachment that clips onto the front of the LA300Bi and uses an optical lens to collimate and focus the beam. The output becomes a tight, projectable spot rather than the LED's standard wide spread, and the included gobo holder lets you slot in pattern plates to project shapes and textures. For Look 3, the BP-SE creates the background light streak. For Look 4, it becomes a precision highlight tool. Both uses depend on its ability to deliver a defined, controllable beam from a compact LED source, which is what makes the LA300Bi and BP-SE combination effective as a secondary light in a studio rig.

Power Balance Between the Two Lights

The AD600BMII at 600Ws has significant power advantage over the 300W LA300Bi. In Looks 3 and 4, where both lights are in the frame, your power balance determines whether the LA300Bi reads as a subtle accent or as an active second light. Start with the AD600BMII at around a quarter to half power and the LA300Bi at full, then adjust from there. The goal in Look 3 is for the projection to read clearly without overexposing the subject from the fill. In Look 4, the AD600BMII behind the subject should expose for the background, not the subject, so the silhouette holds.

Our Verdict on This Approach to Fitness Portrait Lighting

The four-look framework in this tutorial covers the full range of what you can do with a strobe and a precision LED in a fitness portrait setup. Look 1 gives you a clean, professional result with minimal gear. Look 2 takes the same setup further with almost no additional cost. Looks 3 and 4 introduce the LA300Bi and BP-SE and show how much creative range a second, highly controllable light adds to the kit.

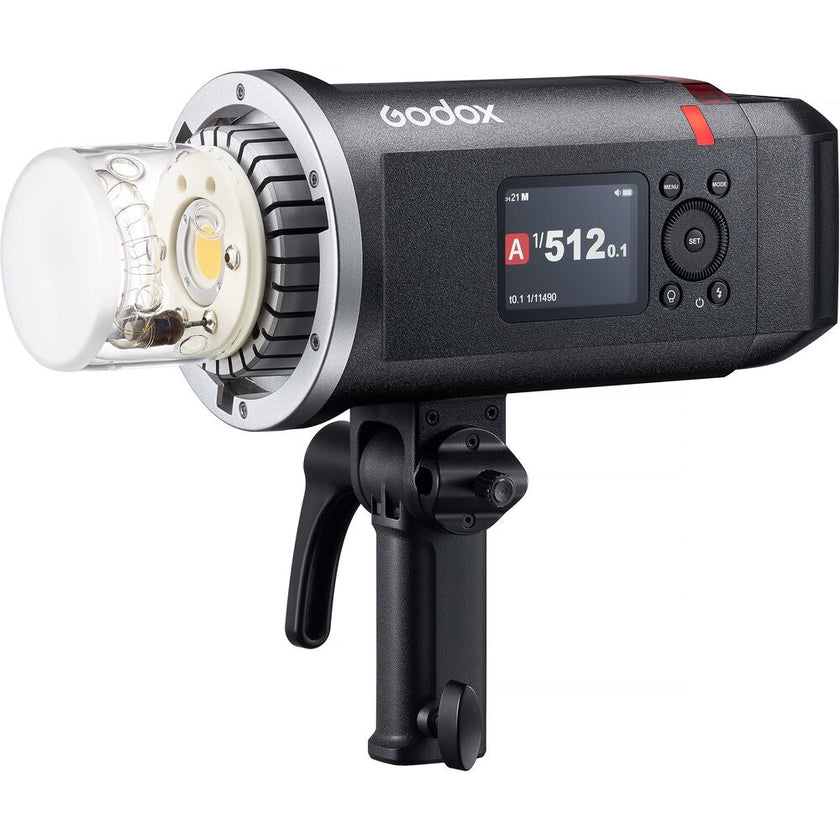

The AD600BMII is well-suited to this type of work. It has the power to shoot through a 150cm modifier and still produce usable exposure in a controlled studio, and its battery system means the whole rig runs off a single charge for a full shoot. If you're doing fitness portraiture regularly, the combination of a high-powered battery strobe and a precision LED with projection capability gives you more setups in one location than any single-light system can. CameraStuff carries both the AD600BMII and the full LA300Bi accessory range, including the BP-SE.

AD600BMII vs LA300Bi: Two Different Roles in the Same Rig

The AD600BMII and LA300Bi are not in competition with each other. They do fundamentally different things, and the strength of this four-look framework is that it shows exactly when each light is the right tool. The AD600BMII is a 600Ws battery strobe: it fires in a flash, supports HSS, and can power through large modifiers. It's your key light and your workhorse. The LA300Bi is a 300W bi-colour LED constant light: it outputs continuously, which makes it straightforward to aim and adjust visually without test firing, and with the BP-SE it delivers a precision projectable beam the strobe cannot replicate. Used together, they give you both broad power and surgical precision in the same setup.
